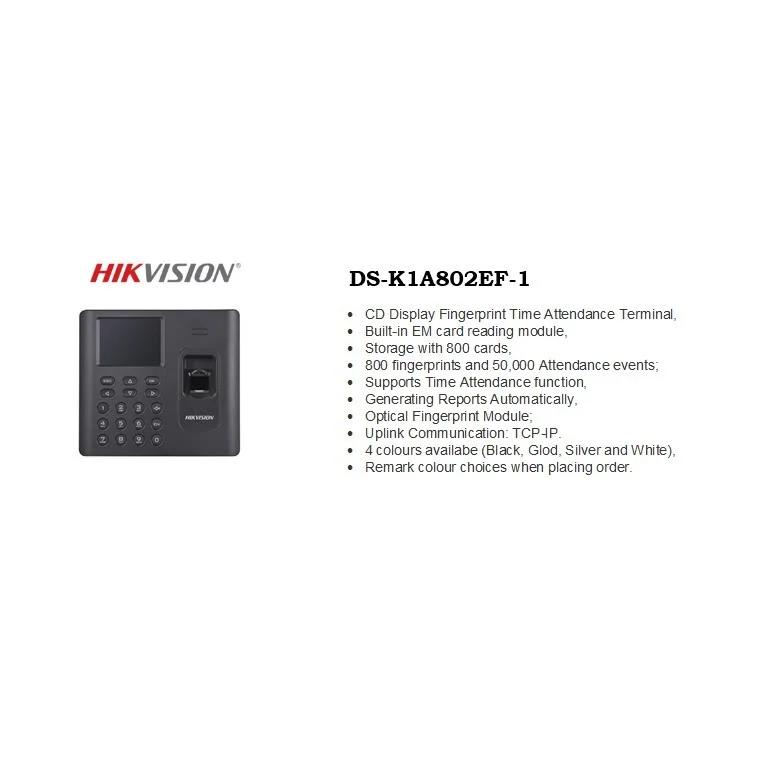

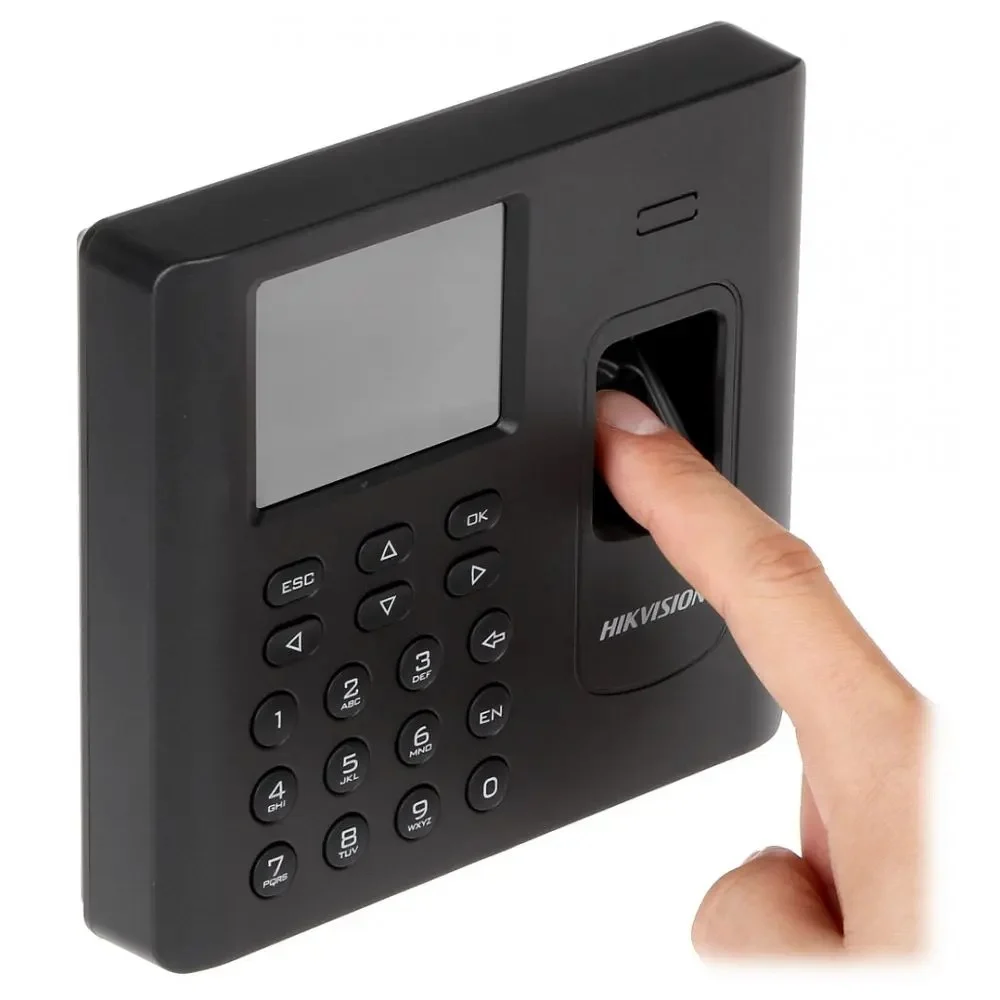

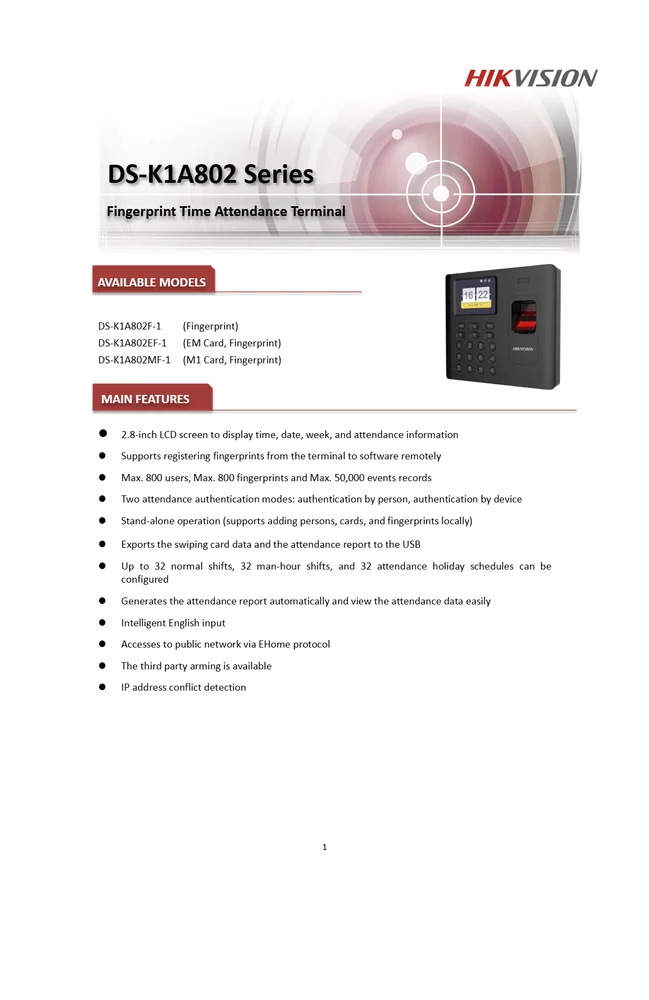

DS-K1A802EF-1 , Fingerprint Time Attendance Terminal
Model: DS-K1A802EF-1

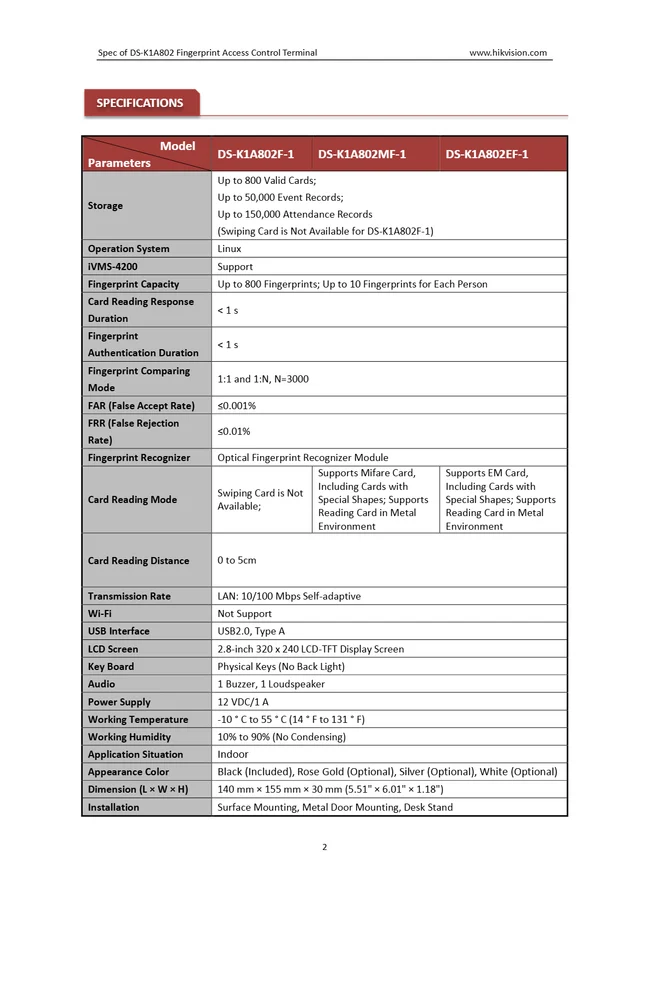

Product Specifications: DS-K1A802EF-1 , Fingerprint Time Attendance Terminal
Product Descriptions:
- General
- StorageUp to 800 Valid Cards; Up to 50,000 Event Records; Up to 150,000 Attendance Records (Swiping Card is Not Available for DS-K1A802F-1)
- Fingerprint CapacityUp to 800 Fingerprints; Up to 10 Fingerprints for Each Person
- Fingerprint Comparing Mode1:1 and 1:N, N=3000
- Card Reading Response Duration< 1 s
- Fingerprint Authentication Duration< 1 s
- FAR(False Accept Rate)≤0.001%
- FRR (False Rejection Rate)≤0.01%
- Fingerprint RecognizerOptical Fingerprint Recognizer Module
- External Card Reader
- Card Reading ModeSupports EM Card, Including Cards with Special Shapes; Supports Reading Card in Metal Environment
- Card Reading Distance0 to 5cm
- Lithium Battery
- Transmission RateLAN: 10/100 Mbps Self-adaptive
- KeyboardPhysical Keys (No Back Light)
- Reset Key
- Communication Interface
- Wi-FiNot Support
- Wiegand Interface
- Input Interface
- Output Interface
- USBUSB2.0, Type A
- LCD Screen2.8-inch 320 x 240 LCD-TFT Display Screen
- Audio1 Buzzer, 1 Loudspeaker
- LED Indicator
- Network interface
- Power Supply12 VDC/1 A
- Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
- Working Humidity10% to 90% (No Condensing)
- Application Situation IIndoor
- Water-Proof
- Temper-Proof

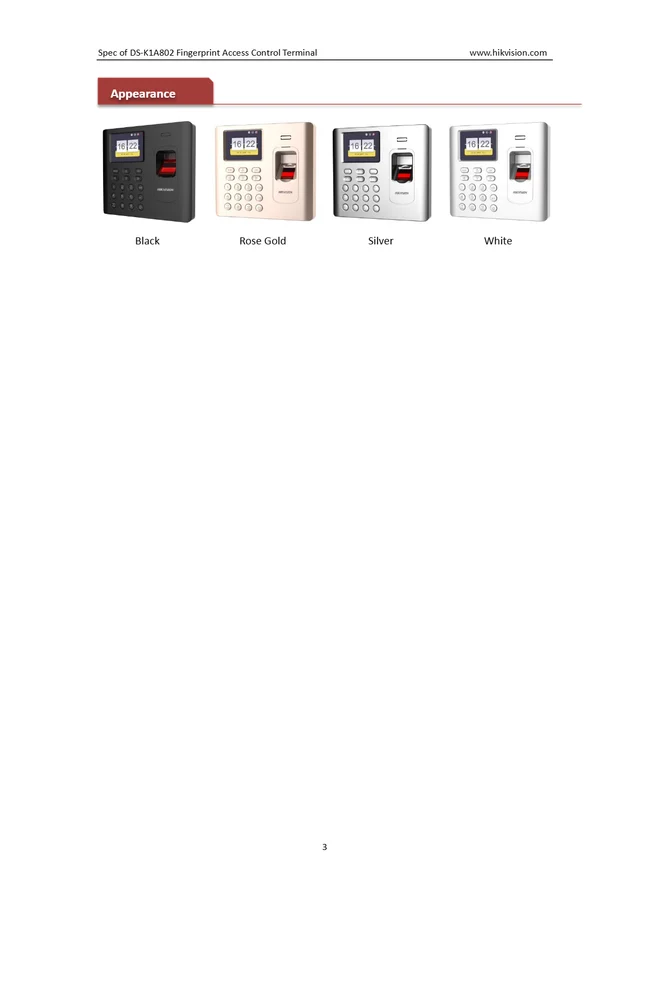

- Appearance ColorBlack (Included), Rose Gold (Optional), Silver (Optional), White (Optional)
- Dimension (L × W × H)140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
- InstallationSurface Mounting, Metal Door Mounting, Desk Stand
- Operating SystemLinux
