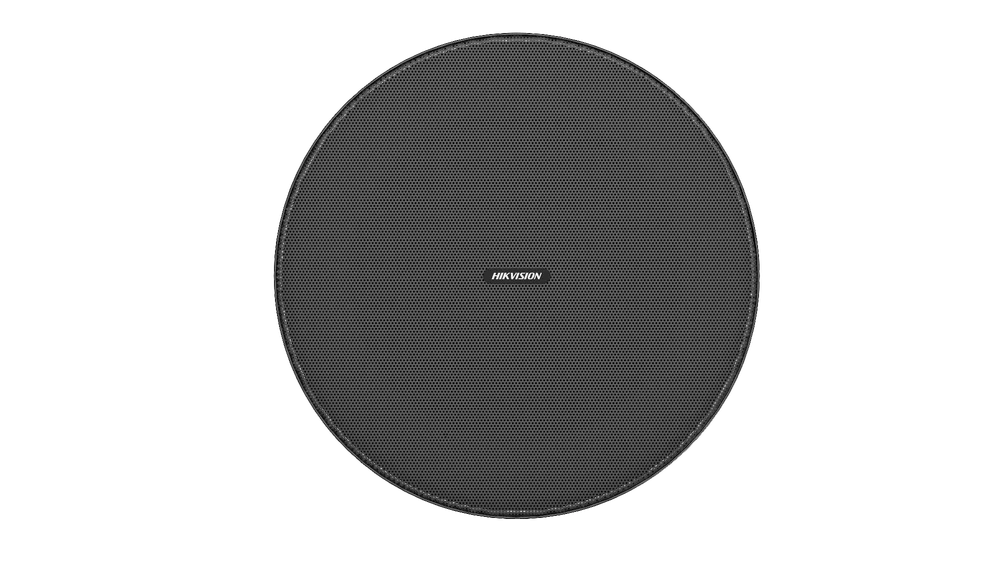

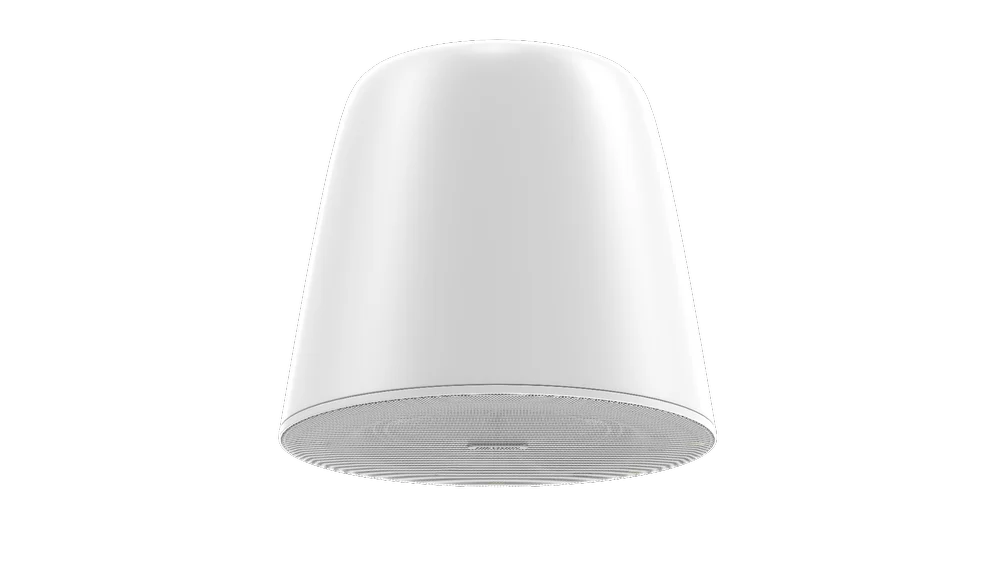

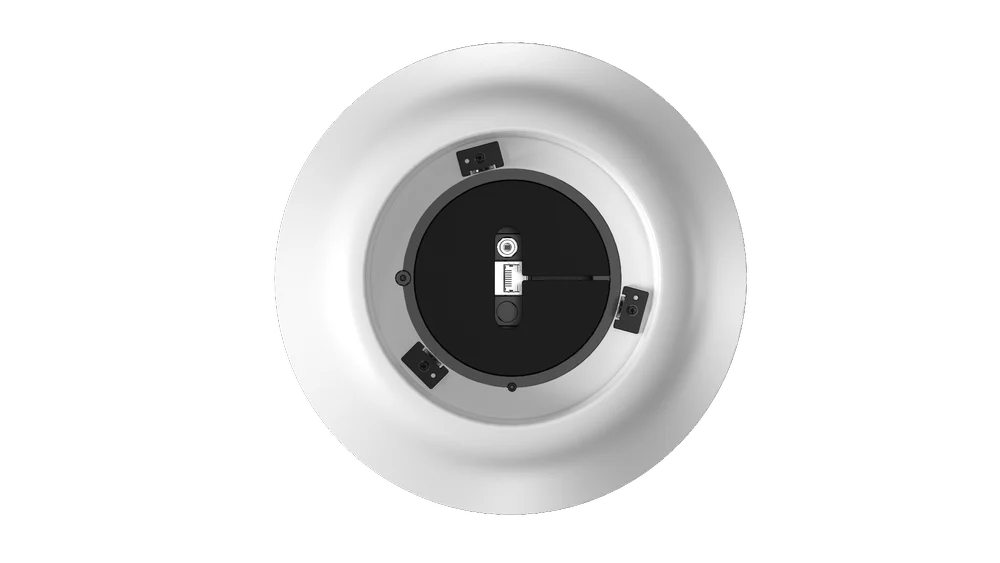

DS-QAZ0510G1 Analog Pendant Speaker 10W
Model: DS-QAZ0510G1
Product Specifications: DS-QAZ0510G1 Analog Pendant Speaker 10W
Product Descriptions:
- 1* 1.0-inch tweeter and 1* 6.5-inch woofer 89dB Nominal Sensitivity 98dB@1m Rated Maximum SPL 120Hz~20kHz(-10dB) bandwidth White or black
- Speaker
- Rated Power10W
- Impedance8Ω
- Max. Acoustic Pressure98dB
- Sensitivity(1 m, 1 W)89dB
- Frequency Response120Hz~20kHz(-10dB)
- Speaker Unit1 × 1.0-inch tweeter and 1 × 6.5-inch woofer
- Total Harmonic Distortion (THD)≤1%
- Interface
- Audio InConstant voltage input: 100 V/Constant voltage input: 70 V/Constant impedance input:8 Ω
- Voltage Input100V: 10W、5W、2.5W 70V：10W、5W、2.5W、1.25W 8Ω
- General
- MaterialMain body: PC Base: ABS
- Operating Temperature-10 °C to 45 °C
- Operating Humidity＜90% (No condensation)
- DimensionØ242.78 mm × 214.78 mm (9.56" × 8.46")
- Package Dimension305 mm × 305 mm × 315 mm (12.01" × 12.01" × 12.4")
- WeightApprox. 2.7 kg (5.95 lb.)
- With Package WeightApprox. 2.9 kg (6.49 lb.)
- Packing ListDevice × 1 Regulatory Compliance and Safety Information × 1
- Language5 languages: English, French, Spanish, German, Italian
