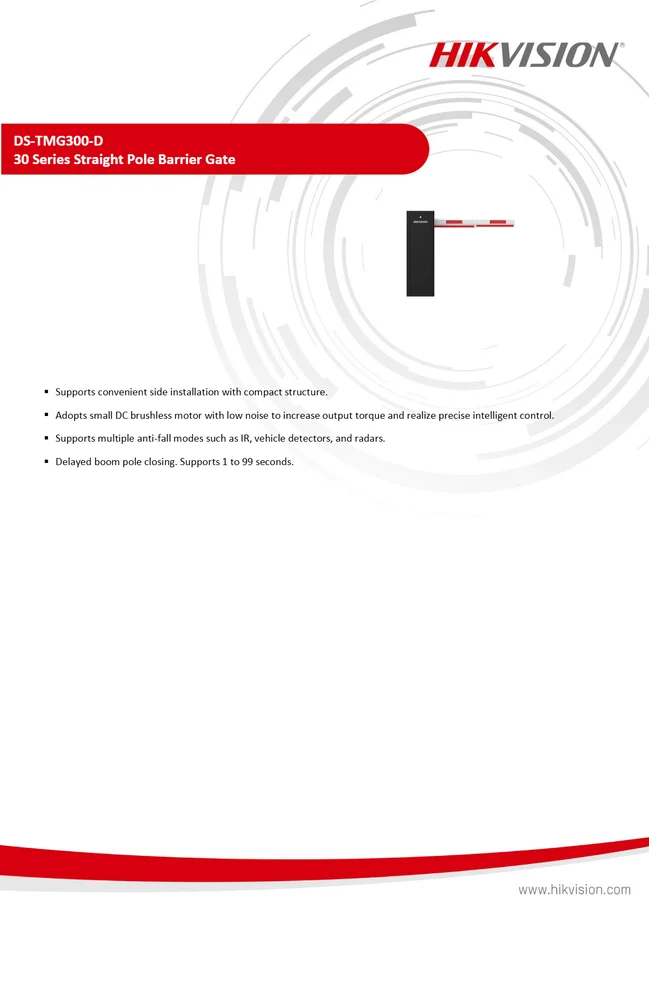

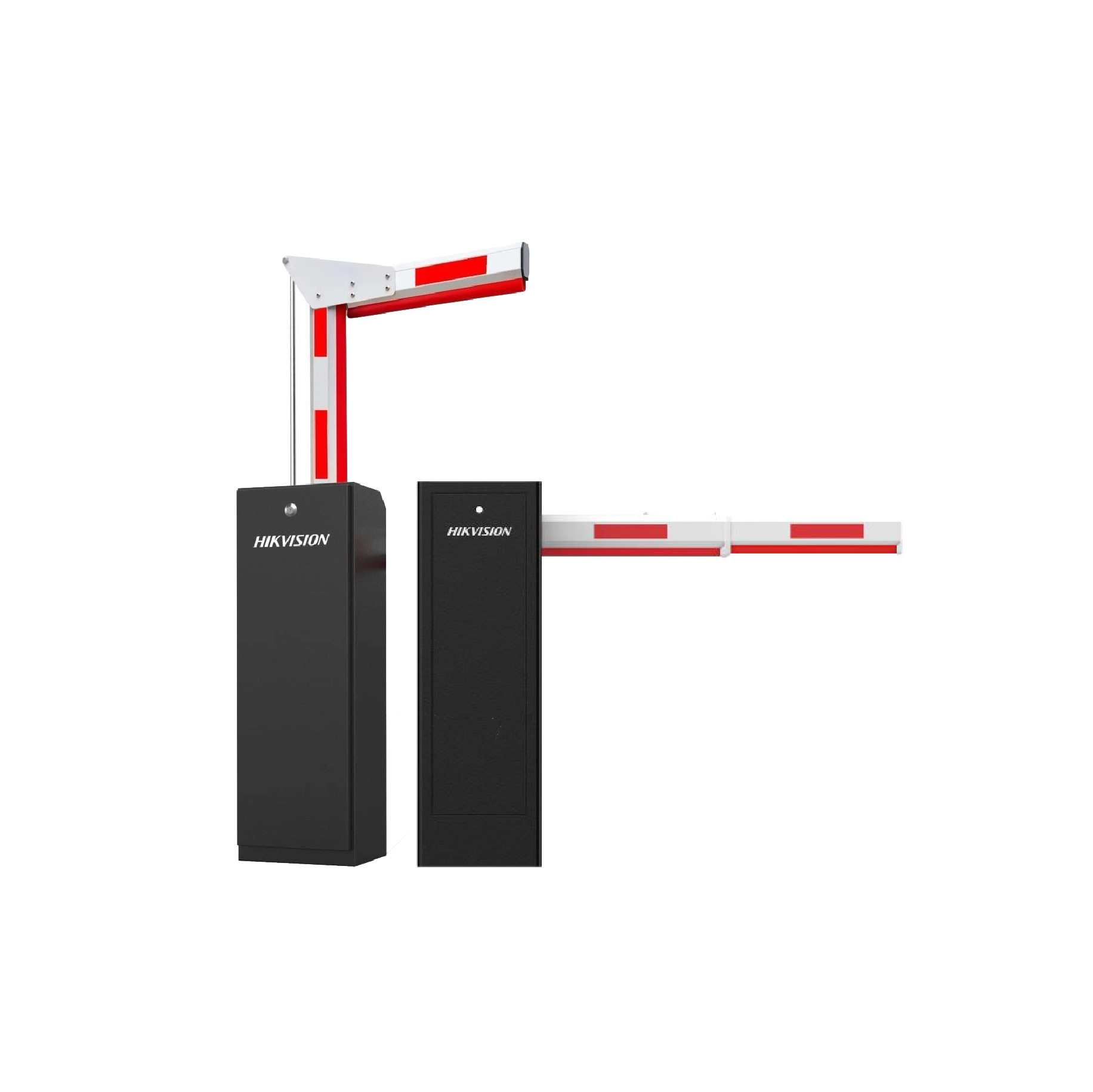

DS-TMG300-DR(2.5-4.5m) , DS-TMG300-DR(2.5-4.5m) , DC brushless motor Barrier Boom with telescopic boom pole
DS-TMG300-DR(2.5-4.5m) , DS-TMG300-DR(2.5-4.5m) , DC brushless motor Barrier Boom with telescopic boom pole
DS-TMG300-DR(2.5-4.5m) , DS-TMG300-DR(2.5-4.5m) , DC brushless motor Barrier Boom with telescopic boom pole
DS-TMG300-DR(2.5-4.5m) , DS-TMG300-DR(2.5-4.5m) , DC brushless motor Barrier Boom with telescopic boom pole
DS-TMG300-DR(2.5-4.5m) , DS-TMG300-DR(2.5-4.5m) , DC brushless motor Barrier Boom with telescopic boom pole
DS-TMG300-DR(2.5-4.5m) , DS-TMG300-DR(2.5-4.5m) , DC brushless motor Barrier Boom with telescopic boom pole
DS-TMG300-DR(2.5-4.5m) , DS-TMG300-DR(2.5-4.5m) , DC brushless motor Barrier Boom with telescopic boom pole
DS-TMG300-DR(2.5-4.5m) , DS-TMG300-DR(2.5-4.5m) , DC brushless motor Barrier Boom with telescopic boom pole

DS-TMG300-DR(2.5-4.5m) , DC brushless motor Barrier Boom with telescopic boom pole

Model: DS-TMG300-DR(2.5-4.5m)

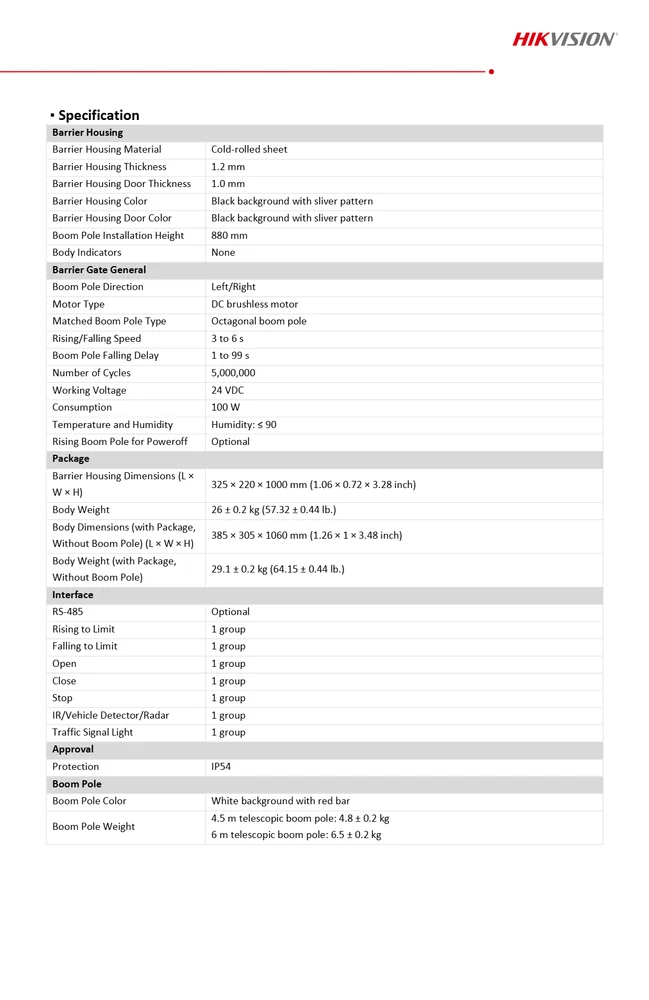

Product Specifications: DS-TMG300-DR(2.5-4.5m) , DC brushless motor Barrier Boom with telescopic boom pole
Product Descriptions:
  • Barrier Housing
  • Barrier Housing MaterialCold-rolled sheet
  • Barrier Housing Thickness1.2 mm
  • Barrier Housing Door Thickness1.0 mm
  • Barrier Housing ColorBlack background with sliver pattern
  • Barrier Housing Door ColorBlack background with sliver pattern
  • Boom Pole Installation Height880 mm
  • Body IndicatorsNone
  • Barrier Gate General
  • Boom Pole DirectionLeft/Right
  • Motor TypeDC brushless motor
  • Matched Boom Pole TypeOctagonal boom pole
  • Rising/Falling Speed3 to 6 s
  • Boom Pole Falling Delay1 to 99 s
  • Number of Cycles5000000
  • Working Voltage24 VDC
  • Consumption100 W
  • Temperature and HumidityHumidity: ≤ 90
  • Rising Boom Pole for PoweroffOptional
  • Approval
  • ProtectionIP54
  • Boom Pole
  • Boom Pole ColorWhite background with red bar

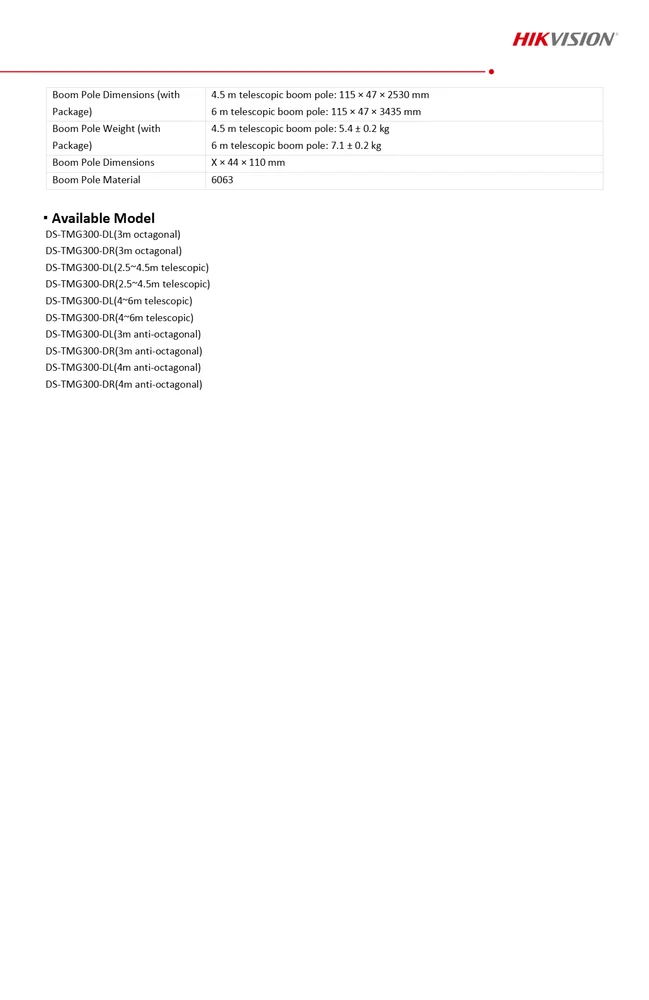

  • Boom Pole Weight4.5 m telescopic boom pole: 4.8 ± 0.2 kg 6 m telescopic boom pole: 6.5 ± 0.2 kg
  • Boom Pole Dimensions (with Package)4.5 m telescopic boom pole: 115 × 47 × 2530 mm 6 m telescopic boom pole: 115 × 47 × 3435 mm
  • Boom Pole Weight (with4.5 m telescopic boom pole: 5.4 ± 0.2 kg
  • Package)6 m telescopic boom pole: 7.1 ± 0.2 kg
  • Boom Pole DimensionsX × 44 × 110 mm
  • Boom Pole Material6063
  • Interface
  • RS-485Optional
  • Rising to Limit1 group
  • Falling to Limit1 group
  • Open1 group
  • Close1 group
  • Stop1 group
  • IR/Vehicle Detector/Radar1 group
  • Traffic Signal Light1 group
  • Package
  • Barrier Housing Dimensions (L × W × H)325 × 220 × 1000 mm (1.06 × 0.72 × 3.28 inch)
  • Body Weight26 ± 0.2 kg (57.32 ± 0.44 lb.)
  • Body Dimensions (with Package, Without Boom Pole) (L × W × H)385 × 305 × 1060 mm (1.26 × 1 × 3.48 inch)
  • Body Weight (with Package, Without Boom Pole)29.1 ± 0.2 kg (64.15 ± 0.44 lb.)
Category: Boom Barrier ( Entrance Management )
